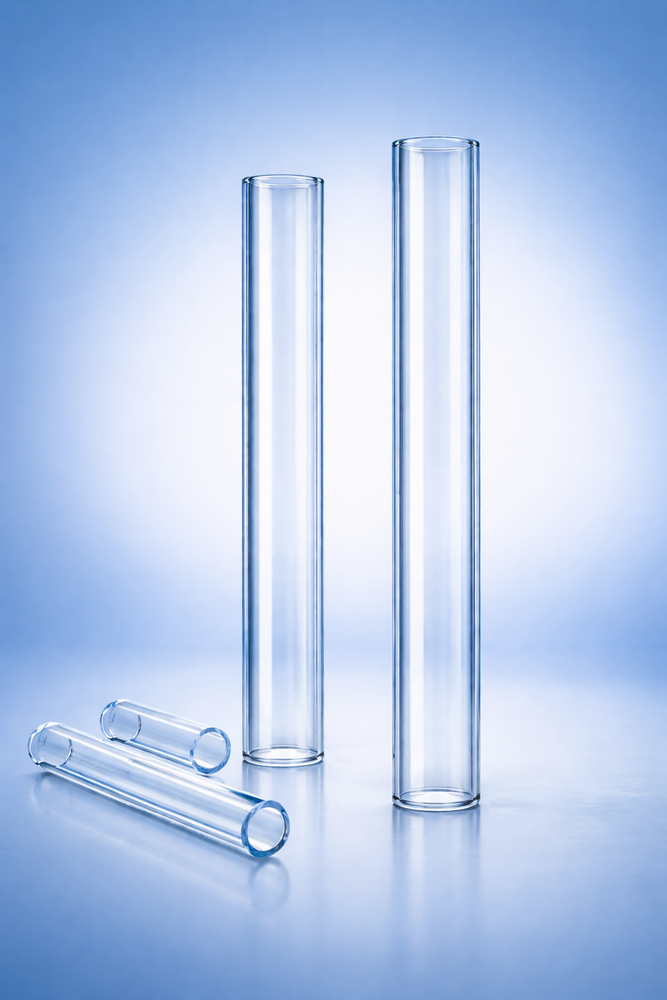

Level indicator tube of borosilicate glass

Name: Level indicator tube of borosilicate glass - ENERGO-METR SRL
SKU: 5644741321354700
Availability: InStock

Price based on offer

Length: 50 mm up to 4000 mm – according to the customer’s requirements. We would like to mention that not all dimensions can be supplied at a length of 4000 mm, therefore please contact us so that we can provide you with specific technical details. Graduation: Tubes can be produced with graduation up to 800 mm in length, according to the customer’s requirements High resistance to temperatures and thermal variations Excellent chemical stability Very good transparency for clear viewing Durability and reliability in use

SKU: 5644741321354700 Categories: Laboratory glassware, Tubes

Description

Technical data

Product	Outer diameter (mm)	Wall thickness (mm)
Level indicator tube	4	0.8
Level indicator tube	6	1
Level indicator tube	7	1
Level indicator tube	7	1.5
Level indicator tube	8	1
Level indicator tube	8	1.5
Level indicator tube	8	2.5
Level indicator tube	10	1
Level indicator tube	10	1.5
Level indicator tube	10	2.2
Level indicator tube	12	1
Level indicator tube	12	1.5
Level indicator tube	12	2.2
Level indicator tube	14	1
Level indicator tube	14	1.5
Level indicator tube	14	2.2
Level indicator tube	16	1.2
Level indicator tube	16	1.8
Level indicator tube	16	2.5
Level indicator tube	18	1.2
Level indicator tube	18	1.8
Level indicator tube	18	2.5
Level indicator tube	20	1.2
Level indicator tube	20	1.8
Level indicator tube	20	2.5
Level indicator tube	22	1.2
Level indicator tube	22	1.8
Level indicator tube	22	2.5
Level indicator tube	24	1.2
Level indicator tube	24	1.8
Level indicator tube	24	2.5
Level indicator tube	26	1.4
Level indicator tube	26	2
Level indicator tube	26	2.8
Level indicator tube	28	1.4
Level indicator tube	28	2
Level indicator tube	28	2.8
Level indicator tube	30	1.4
Level indicator tube	30	2
Level indicator tube	30	2.8
Level indicator tube	32	1.4
Level indicator tube	32	2
Level indicator tube	32	2.8
Level indicator tube	34	1.4
Level indicator tube	34	2
Level indicator tube	34	2.8
Level indicator tube	36	1.4
Level indicator tube	36	2
Level indicator tube	36	2.8
Level indicator tube	38	1.4
Level indicator tube	38	2
Level indicator tube	38	2.8
Level indicator tube	40	1.6
Level indicator tube	40	2.3
Level indicator tube	40	3.2
Level indicator tube	40	5
Level indicator tube	42	1.6
Level indicator tube	42	2.3
Level indicator tube	42	3.2
Level indicator tube	44	1.6
Level indicator tube	44	2.3
Level indicator tube	44	3.2
Level indicator tube	46	1.6
Level indicator tube	46	2.3
Level indicator tube	46	3.2
Level indicator tube	48	1.6
Level indicator tube	48	2.3
Level indicator tube	48	3.2
Level indicator tube	50	1.8
Level indicator tube	50	2.5
Level indicator tube	50	3.5
Level indicator tube	50	5
Level indicator tube	52	1.8
Level indicator tube	52	2.5
Level indicator tube	52	3.5
Level indicator tube	54	1.8
Level indicator tube	54	2.5
Level indicator tube	54	3.5
Level indicator tube	56	1.8
Level indicator tube	56	2.5
Level indicator tube	56	3.5
Level indicator tube	58	1.8
Level indicator tube	58	2.5
Level indicator tube	58	3.5
Level indicator tube	60	2.2
Level indicator tube	60	3.2
Level indicator tube	60	5
Level indicator tube	65	2.2
Level indicator tube	65	3.2
Level indicator tube	65	5
Level indicator tube	70	2.2
Level indicator tube	70	3.2
Level indicator tube	70	5
Level indicator tube	80	2.5
Level indicator tube	80	3.5
Level indicator tube	80	5

Level indicator tube of borosilicate glass

Technical data
